osgeo::proj::cs::CartesianCS Class Reference

A two- or three-dimensional coordinate system in Euclidean space with orthogonal straight axes. More...

#include <coordinatesystem.hpp>

Inheritance diagram for osgeo::proj::cs::CartesianCS:

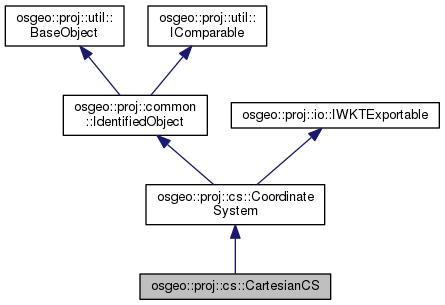

Collaboration diagram for osgeo::proj::cs::CartesianCS:

Static Public Member Functions
static CartesianCSNNPtr	create (const util::PropertyMap &properties, const CoordinateSystemAxisNNPtr &axis1, const CoordinateSystemAxisNNPtr &axis2)
	Instanciate a CartesianCS. More...
static CartesianCSNNPtr	create (const util::PropertyMap &properties, const CoordinateSystemAxisNNPtr &axis1, const CoordinateSystemAxisNNPtr &axis2, const CoordinateSystemAxisNNPtr &axis3)
	Instanciate a CartesianCS. More...
static CartesianCSNNPtr	createEastingNorthing (const common::UnitOfMeasure &unit)
	Instanciate a CartesianCS with a Easting (first) and Northing (second) axis. More...
static CartesianCSNNPtr	createGeocentric (const common::UnitOfMeasure &unit)
	Instanciate a CartesianCS with the three geocentric axes. More...
Static Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
static IdentifiedObjectNNPtr	create (const util::PropertyMap &properties)
	Instanciate a new IdentifiedObject. More...

Additional Inherited Members
Public Types inherited from osgeo::proj::util::IComparable
enum	Criterion { Criterion::STRICT, Criterion::EQUIVALENT }
	Comparison criterion. More...
Public Member Functions inherited from osgeo::proj::cs::CoordinateSystem
const std::vector< CoordinateSystemAxisNNPtr > &	axisList () PROJ_CONST_DECL
	Return the list of axes of this coordinate system. More...
bool	isEquivalentTo (const util::IComparable *other, util::IComparable::Criterion criterion=util::IComparable::Criterion::STRICT) const override
	Returns whether an object is equivalent to another one. More...
Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
const metadata::IdentifierNNPtr &	name () PROJ_CONST_DECL
	Return the name of the object. More...
const std::string &	nameStr () PROJ_CONST_DECL
	Return the name of the object. More...
const std::vector< metadata::IdentifierNNPtr > &	identifiers () PROJ_CONST_DECL
	Return the identifier(s) of the object. More...
const std::vector< util::GenericNameNNPtr > &	aliases () PROJ_CONST_DECL
	Return the alias(es) of the object.
const std::string &	remarks () PROJ_CONST_DECL
	Return the remarks.
bool	isDeprecated () PROJ_CONST_DECL
	Return whether the object is deprecated. More...
std::string	alias () PROJ_CONST_DECL
	Return the (first) alias of the object as a string. More...
int	getEPSGCode () PROJ_CONST_DECL
	Return the EPSG code. More...
bool	isEPSG (int code) PROJ_CONST_DECL
	Return whether the object has a identifiers() in the EPSG code space.
Public Member Functions inherited from osgeo::proj::io::IWKTExportable
std::string	exportToWKT (WKTFormatter *formatter) const
Static Public Attributes inherited from osgeo::proj::common::IdentifiedObject
static const std::string	NAME_KEY
	Key to set the name of a common::IdentifiedObject. More...
static const std::string	IDENTIFIERS_KEY
	Key to set the identifier(s) of a common::IdentifiedObject. More...
static const std::string	ALIAS_KEY
	Key to set the alias(es) of a common::IdentifiedObject. More...
static const std::string	REMARKS_KEY
	Key to set the remarks of a common::IdentifiedObject. More...
static const std::string	DEPRECATED_KEY
	Key to set the deprecation flag of a common::IdentifiedObject. More...

Detailed Description

A two- or three-dimensional coordinate system in Euclidean space with orthogonal straight axes.

All axes shall have the same length unit. A CartesianCS shall have two or three axis associations; the number of associations shall equal the dimension of the CS.

Remarks

Implements CartesianCS from ISO 19111:2018

Member Function Documentation

CartesianCSNNPtr osgeo::proj::cs::CartesianCS::create ( const util::PropertyMap &  properties, const CoordinateSystemAxisNNPtr &  axis1, const CoordinateSystemAxisNNPtr &  axis2  )

static

Instanciate a CartesianCS.

Parameters

properties	See General properties.
axis1	The first axis.
axis2	The second axis.

Returns

a new CartesianCS.

CartesianCSNNPtr osgeo::proj::cs::CartesianCS::create ( const util::PropertyMap &  properties, const CoordinateSystemAxisNNPtr &  axis1, const CoordinateSystemAxisNNPtr &  axis2, const CoordinateSystemAxisNNPtr &  axis3  )

static

Instanciate a CartesianCS.

Parameters

properties	See General properties.
axis1	The first axis.
axis2	The second axis.
axis3	The third axis.

Returns

a new CartesianCS.

CartesianCSNNPtr osgeo::proj::cs::CartesianCS::createEastingNorthing ( const common::UnitOfMeasure &  unit )

static

Instanciate a CartesianCS with a Easting (first) and Northing (second) axis.

Parameters

unit	Linear unit of the axes.

Returns

a new CartesianCS.

CartesianCSNNPtr osgeo::proj::cs::CartesianCS::createGeocentric ( const common::UnitOfMeasure &  unit )

static

Instanciate a CartesianCS with the three geocentric axes.

Parameters

unit	Liinear unit of the axes.

Returns

a new CartesianCS.

---

The documentation for this class was generated from the following files:

• include/proj/coordinatesystem.hpp
• src/coordinatesystem.cpp
