A vertical reference frame in which some of the defining parameters have time dependency. More...

#include <datum.hpp>

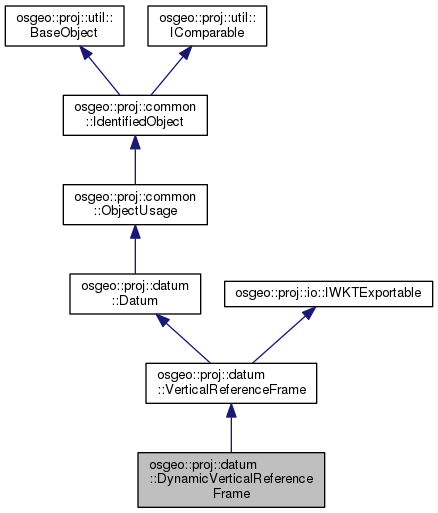

Inheritance diagram for osgeo::proj::datum::DynamicVerticalReferenceFrame:

[legend]

Collaboration diagram for osgeo::proj::datum::DynamicVerticalReferenceFrame:

[legend]

Public Member Functions
const common::Measure &	frameReferenceEpoch () const
	Return the epoch to which the coordinates of stations defining the dynamic geodetic reference frame are referenced. More...

const util::optional< std::string > &	deformationModelName () const
	Return the name of the deformation model. More...

bool	isEquivalentTo (const util::IComparable *other, util::IComparable::Criterion criterion=util::IComparable::Criterion::STRICT) const override
	Returns whether an object is equivalent to another one. More...

Public Member Functions inherited from osgeo::proj::datum::VerticalReferenceFrame
const util::optional< RealizationMethod > &	realizationMethod () const
	Return the method through which this vertical reference frame is realized. More...

Public Member Functions inherited from osgeo::proj::datum::Datum
const util::optional< std::string > &	anchorDefinition () const
	Return the anchor definition. More...

const util::optional< common::DateTime > &	publicationDate () const
	Return the date on which the datum definition was published. More...

const common::IdentifiedObjectPtr &	conventionalRS () const
	Return the conventional reference system. More...

Public Member Functions inherited from osgeo::proj::common::ObjectUsage
const std::vector< ObjectDomainNNPtr > &	domains () PROJ_CONST_DECL
	Return the domains of the object.

Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
const metadata::IdentifierNNPtr &	name () PROJ_CONST_DECL
	Return the name of the object. More...

const std::string &	nameStr () PROJ_CONST_DECL
	Return the name of the object. More...

const std::vector< metadata::IdentifierNNPtr > &	identifiers () PROJ_CONST_DECL
	Return the identifier(s) of the object. More...

const std::vector< util::GenericNameNNPtr > &	aliases () PROJ_CONST_DECL
	Return the alias(es) of the object.

const std::string &	remarks () PROJ_CONST_DECL
	Return the remarks.

bool	isDeprecated () PROJ_CONST_DECL
	Return whether the object is deprecated. More...

std::string	alias () PROJ_CONST_DECL
	Return the (first) alias of the object as a string. More...

int	getEPSGCode () PROJ_CONST_DECL
	Return the EPSG code. More...

bool	isEPSG (int code) PROJ_CONST_DECL
	Return whether the object has a identifiers() in the EPSG code space.

Public Member Functions inherited from osgeo::proj::io::IWKTExportable
std::string	exportToWKT (WKTFormatter *formatter) const

Static Public Member Functions
static DynamicVerticalReferenceFrameNNPtr	create (const util::PropertyMap &properties, const util::optional< std::string > &anchor, const util::optional< RealizationMethod > &realizationMethodIn, const common::Measure &frameReferenceEpochIn, const util::optional< std::string > &deformationModelNameIn)
	Instanciate a DyanmicVerticalReferenceFrame. More...

Static Public Member Functions inherited from osgeo::proj::datum::VerticalReferenceFrame
static VerticalReferenceFrameNNPtr	create (const util::PropertyMap &properties, const util::optional< std::string > &anchor=util::optional< std::string >(), const util::optional< RealizationMethod > &realizationMethodIn=util::optional< RealizationMethod >())
	Instanciate a VerticalReferenceFrame. More...

Static Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
static IdentifiedObjectNNPtr	create (const util::PropertyMap &properties)
	Instanciate a new IdentifiedObject. More...

Additional Inherited Members
Public Types inherited from osgeo::proj::util::IComparable
enum	Criterion { Criterion::STRICT, Criterion::EQUIVALENT }
	Comparison criterion. More...

Static Public Attributes inherited from osgeo::proj::common::ObjectUsage
static const std::string	SCOPE_KEY
	Key to set the scope of a common::ObjectUsage. More...

static const std::string	DOMAIN_OF_VALIDITY_KEY
	Key to set the domain of validity of a common::ObjectUsage. More...

static const std::string	OBJECT_DOMAIN_KEY
	Key to set the object domain(s) of a common::ObjectUsage. More...

Static Public Attributes inherited from osgeo::proj::common::IdentifiedObject
static const std::string	NAME_KEY
	Key to set the name of a common::IdentifiedObject. More...

static const std::string	IDENTIFIERS_KEY
	Key to set the identifier(s) of a common::IdentifiedObject. More...

static const std::string	ALIAS_KEY
	Key to set the alias(es) of a common::IdentifiedObject. More...

static const std::string	REMARKS_KEY
	Key to set the remarks of a common::IdentifiedObject. More...

static const std::string	DEPRECATED_KEY
	Key to set the deprecation flag of a common::IdentifiedObject. More...

Detailed Description

A vertical reference frame in which some of the defining parameters have time dependency.

For example defining station heights have velocity to account for post-glacial isostatic rebound motion.

Remarks: Implements DynamicVerticalReferenceFrame from ISO 19111:2018

Member Function Documentation

DynamicVerticalReferenceFrameNNPtr osgeo::proj::datum::DynamicVerticalReferenceFrame::create	(	const util::PropertyMap &	properties,
		const util::optional< std::string > &	anchor,
		const util::optional< RealizationMethod > &	realizationMethodIn,
		const common::Measure &	frameReferenceEpochIn,
		const util::optional< std::string > &	deformationModelNameIn
	)

static

Instanciate a DyanmicVerticalReferenceFrame.

Parameters

properties	See General properties. At minimum the name should be defined.
anchor	the anchor definition, or empty.
realizationMethodIn	the realization method, or empty.
frameReferenceEpochIn	the frame reference epoch.
deformationModelNameIn	deformation model name, or empty

Returns: new DyanmicVerticalReferenceFrame.

const util::optional< std::string > & osgeo::proj::datum::DynamicVerticalReferenceFrame::deformationModelName ( ) const

Return the name of the deformation model.

Note: This is an extension to the ISO 19111:2018 modeling, to hold the content of the DYNAMIC.MODEL WKT2 node.

Returns: the name of the deformation model.

const common::Measure & osgeo::proj::datum::DynamicVerticalReferenceFrame::frameReferenceEpoch ( ) const

Return the epoch to which the coordinates of stations defining the dynamic geodetic reference frame are referenced.

Usually given as a decimal year e.g. 2016.47.

Returns: the frame reference epoch.

bool osgeo::proj::datum::DynamicVerticalReferenceFrame::isEquivalentTo	(	const util::IComparable *	other,
		util::IComparable::Criterion	criterion = `util::IComparable::Criterion::STRICT`
	)		const

overridevirtual

Returns whether an object is equivalent to another one.

Parameters

other	other object to compare to
criterion	comparaison criterion.

Returns: true if objects are equivalent.

Reimplemented from osgeo::proj::datum::VerticalReferenceFrame.

The documentation for this class was generated from the following files:

include/proj/datum.hpp
src/datum.cpp
