A geometric figure that can be used to describe the approximate shape of an object. More...

#include <datum.hpp>

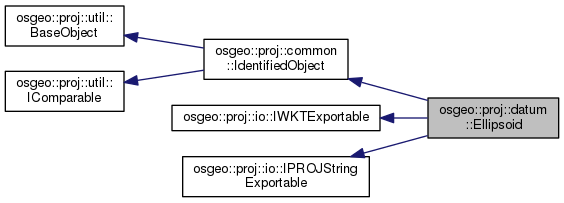

Inheritance diagram for osgeo::proj::datum::Ellipsoid:

[legend]

Collaboration diagram for osgeo::proj::datum::Ellipsoid:

[legend]

Public Member Functions
const common::Length &	semiMajorAxis () PROJ_CONST_DECL
	Return the length of the semi-major axis of the ellipsoid. More...

const util::optional< common::Scale > &	inverseFlattening () PROJ_CONST_DECL
	Return the inverse flattening value of the ellipsoid, if the ellipsoid has been defined with this value. More...

const util::optional< common::Length > &	semiMinorAxis () PROJ_CONST_DECL
	Return the length of the semi-minor axis of the ellipsoid, if the ellipsoid has been defined with this value. More...

bool	isSphere () PROJ_CONST_DECL
	Return whether the ellipsoid is spherical. More...

const util::optional< common::Length > &	semiMedianAxis () PROJ_CONST_DECL
	Return the length of the semi-median axis of a triaxial ellipsoid. More...

common::Scale	computeInverseFlattening () const
	Return or compute the inverse flattening value of the ellipsoid. More...

common::Length	computeSemiMinorAxis () const
	Return or compute the length of the semi-minor axis of the ellipsoid. More...

const std::string &	celestialBody () PROJ_CONST_DECL
	Return the name of the celestial body on which the ellipsoid refers to.

EllipsoidNNPtr	identify () const
	Return a Ellipsoid object where some parameters are better identified. More...

bool	isEquivalentTo (const util::IComparable *other, util::IComparable::Criterion criterion=util::IComparable::Criterion::STRICT) const override
	Returns whether an object is equivalent to another one. More...

Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
const metadata::IdentifierNNPtr &	name () PROJ_CONST_DECL
	Return the name of the object. More...

const std::string &	nameStr () PROJ_CONST_DECL
	Return the name of the object. More...

const std::vector< metadata::IdentifierNNPtr > &	identifiers () PROJ_CONST_DECL
	Return the identifier(s) of the object. More...

const std::vector< util::GenericNameNNPtr > &	aliases () PROJ_CONST_DECL
	Return the alias(es) of the object.

const std::string &	remarks () PROJ_CONST_DECL
	Return the remarks.

bool	isDeprecated () PROJ_CONST_DECL
	Return whether the object is deprecated. More...

std::string	alias () PROJ_CONST_DECL
	Return the (first) alias of the object as a string. More...

int	getEPSGCode () PROJ_CONST_DECL
	Return the EPSG code. More...

bool	isEPSG (int code) PROJ_CONST_DECL
	Return whether the object has a identifiers() in the EPSG code space.

Public Member Functions inherited from osgeo::proj::io::IWKTExportable
std::string	exportToWKT (WKTFormatter *formatter) const

Public Member Functions inherited from osgeo::proj::io::IPROJStringExportable
std::string	exportToPROJString (PROJStringFormatter *formatter) const
	Builds a PROJ string representation. More...

Static Public Member Functions
static EllipsoidNNPtr	createSphere (const util::PropertyMap &properties, const common::Length &radius, const std::string &celestialBody=EARTH)
	Instanciate a Ellipsoid as a sphere. More...

static EllipsoidNNPtr	createFlattenedSphere (const util::PropertyMap &properties, const common::Length &semiMajorAxisIn, const common::Scale &invFlattening, const std::string &celestialBody=EARTH)
	Instanciate a Ellipsoid from its inverse/reverse flattening. More...

static EllipsoidNNPtr	createTwoAxis (const util::PropertyMap &properties, const common::Length &semiMajorAxisIn, const common::Length &semiMinorAxisIn, const std::string &celestialBody=EARTH)
	Instanciate a Ellipsoid from the value of its two semi axis. More...

Static Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
static IdentifiedObjectNNPtr	create (const util::PropertyMap &properties)
	Instanciate a new IdentifiedObject. More...

Static Public Attributes
static const std::string	EARTH
	Earth celestial body.

static const EllipsoidNNPtr	CLARKE_1866
	The EPSG:7008 / "Clarke 1866" Ellipsoid.

static const EllipsoidNNPtr	WGS84
	The EPSG:7030 / "WGS 84" Ellipsoid.

static const EllipsoidNNPtr	GRS1980
	The EPSG:7019 / "GRS 1980" Ellipsoid.

Static Public Attributes inherited from osgeo::proj::common::IdentifiedObject
static const std::string	NAME_KEY
	Key to set the name of a common::IdentifiedObject. More...

static const std::string	IDENTIFIERS_KEY
	Key to set the identifier(s) of a common::IdentifiedObject. More...

static const std::string	ALIAS_KEY
	Key to set the alias(es) of a common::IdentifiedObject. More...

static const std::string	REMARKS_KEY
	Key to set the remarks of a common::IdentifiedObject. More...

static const std::string	DEPRECATED_KEY
	Key to set the deprecation flag of a common::IdentifiedObject. More...

Additional Inherited Members
Public Types inherited from osgeo::proj::util::IComparable
enum	Criterion { Criterion::STRICT, Criterion::EQUIVALENT }
	Comparison criterion. More...

Detailed Description

A geometric figure that can be used to describe the approximate shape of an object.

For the Earth an oblate biaxial ellipsoid is used: in mathematical terms, it is a surface formed by the rotation of an ellipse about its minor axis.

Remarks: Implements Ellipsoid from ISO 19111:2018

Member Function Documentation

common::Scale osgeo::proj::datum::Ellipsoid::computeInverseFlattening ( ) const

Return or compute the inverse flattening value of the ellipsoid.

If computed, the inverse flattening is the result of a / (a - b), where a is the semi-major axis and b the semi-minor axis.

Returns: the inverse flattening value of the ellipsoid, or 0 for a sphere.

common::Length osgeo::proj::datum::Ellipsoid::computeSemiMinorAxis ( ) const

Return or compute the length of the semi-minor axis of the ellipsoid.

If computed, the semi-minor axis is the result of a * (1 - 1 / rf) where a is the semi-major axis and rf the reverse/inverse flattening.

Returns: the semi-minor axis of the ellipsoid.

EllipsoidNNPtr osgeo::proj::datum::Ellipsoid::createFlattenedSphere	(	const util::PropertyMap &	properties,
		const common::Length &	semiMajorAxisIn,
		const common::Scale &	invFlattening,
		const std::string &	celestialBody = `EARTH`
	)

static

Instanciate a Ellipsoid from its inverse/reverse flattening.

Parameters

properties	See General properties. At minimum the name should be defined.
semiMajorAxisIn	the semi-major axis.
invFlattening	the inverse/reverse flattening.
celestialBody	Name of the celestial body on which the ellipsoid refers to.

Returns: new Ellipsoid.

EllipsoidNNPtr osgeo::proj::datum::Ellipsoid::createSphere	(	const util::PropertyMap &	properties,
		const common::Length &	radius,
		const std::string &	celestialBody = `EARTH`
	)

static

Instanciate a Ellipsoid as a sphere.

Parameters

properties	See General properties. At minimum the name should be defined.
radius	the sphere radius (semi-major axis).
celestialBody	Name of the celestial body on which the ellipsoid refers to.

Returns: new Ellipsoid.

EllipsoidNNPtr osgeo::proj::datum::Ellipsoid::createTwoAxis	(	const util::PropertyMap &	properties,
		const common::Length &	semiMajorAxisIn,
		const common::Length &	semiMinorAxisIn,
		const std::string &	celestialBody = `EARTH`
	)

static

Instanciate a Ellipsoid from the value of its two semi axis.

Parameters

properties	See General properties. At minimum the name should be defined.
semiMajorAxisIn	the semi-major axis.
semiMinorAxisIn	the semi-minor axis.
celestialBody	Name of the celestial body on which the ellipsoid refers to.

Returns: new Ellipsoid.

EllipsoidNNPtr osgeo::proj::datum::Ellipsoid::identify ( ) const

Return a Ellipsoid object where some parameters are better identified.

Returns: a new Ellipsoid.

const util::optional< common::Scale > & osgeo::proj::datum::Ellipsoid::inverseFlattening ( )

Return the inverse flattening value of the ellipsoid, if the ellipsoid has been defined with this value.

See also: computeInverseFlattening() that will always return a valid value of the inverse flattening, whether the ellipsoid has been defined through inverse flattening or semi-minor axis.

Returns: the inverse flattening value of the ellipsoid, or empty.

bool osgeo::proj::datum::Ellipsoid::isEquivalentTo	(	const util::IComparable *	other,
		util::IComparable::Criterion	criterion = `util::IComparable::Criterion::STRICT`
	)		const

overridevirtual

Returns whether an object is equivalent to another one.

Parameters

other	other object to compare to
criterion	comparaison criterion.

Returns: true if objects are equivalent.

Implements osgeo::proj::util::IComparable.

bool osgeo::proj::datum::Ellipsoid::isSphere ( )

Return whether the ellipsoid is spherical.

That is to say is semiMajorAxis() == computeSemiMinorAxis().

A sphere is completely defined by the semi-major axis, which is the radius of the sphere.

Returns: true if the ellipsoid is spherical.

const common::Length & osgeo::proj::datum::Ellipsoid::semiMajorAxis ( )

Return the length of the semi-major axis of the ellipsoid.

Returns: the semi-major axis.

const util::optional< common::Length > & osgeo::proj::datum::Ellipsoid::semiMedianAxis ( )

Return the length of the semi-median axis of a triaxial ellipsoid.

This parameter is not required for a biaxial ellipsoid.

Returns: the semi-median axis of the ellipsoid, or empty.

const util::optional< common::Length > & osgeo::proj::datum::Ellipsoid::semiMinorAxis ( )

Return the length of the semi-minor axis of the ellipsoid, if the ellipsoid has been defined with this value.

See also: computeSemiMinorAxis() that will always return a valid value of the inverse flattening, whether the ellipsoid has been defined through inverse flattening or semi-minor axis.

Returns: the semi-minor axis of the ellipsoid, or empty.

The documentation for this class was generated from the following files:

include/proj/datum.hpp
src/datum.cpp
src/static.cpp
