A single (not concatenated) coordinate operation (CoordinateOperation) More...

#include <coordinateoperation.hpp>

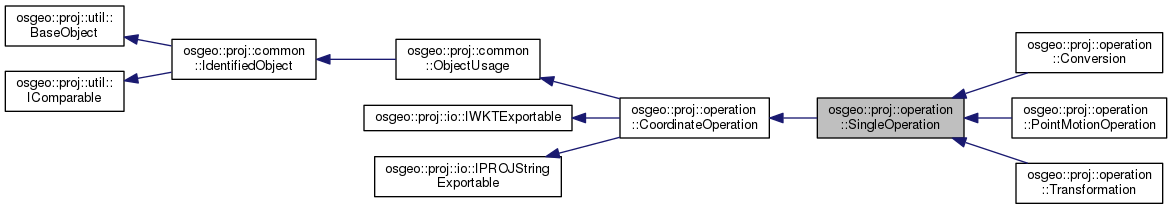

Inheritance diagram for osgeo::proj::operation::SingleOperation:

[legend]

Collaboration diagram for osgeo::proj::operation::SingleOperation:

[legend]

Public Member Functions
const std::vector< GeneralParameterValueNNPtr > &	parameterValues () PROJ_CONST_DECL
	Return the parameter values. More...

const OperationMethodNNPtr &	method () PROJ_CONST_DECL
	Return the operation method associated to the operation. More...

const ParameterValuePtr &	parameterValue (const std::string &paramName, int epsg_code=0) const noexcept
	Return the parameter value corresponding to a parameter name or EPSG code. More...

const common::Measure &	parameterValueMeasure (const std::string &paramName, int epsg_code=0) const noexcept
	Return the parameter value, as a measure, corresponding to a parameter name or EPSG code. More...

bool	isEquivalentTo (const util::IComparable *other, util::IComparable::Criterion criterion=util::IComparable::Criterion::STRICT) const override
	Returns whether an object is equivalent to another one. More...

std::set< GridDescription >	gridsNeeded (const io::DatabaseContextPtr &databaseContext) const override
	Return grids needed by an operation.

Public Member Functions inherited from osgeo::proj::operation::CoordinateOperation
const util::optional< std::string > &	operationVersion () const
	Return the version of the coordinate transformation (i.e. instantiation due to the stochastic nature of the parameters). More...

const std::vector< metadata::PositionalAccuracyNNPtr > &	coordinateOperationAccuracies () const
	Return estimate(s) of the impact of this coordinate operation on point accuracy. More...

const crs::CRSPtr	sourceCRS () const
	Return the source CRS of this coordinate operation. More...

const crs::CRSPtr	targetCRS () const
	Return the target CRS of this coordinate operation. More...

const crs::CRSPtr &	interpolationCRS () const
	Return the interpolation CRS of this coordinate operation. More...

const util::optional< common::DataEpoch > &	sourceCoordinateEpoch () const
	Return the source epoch of coordinates. More...

const util::optional< common::DataEpoch > &	targetCoordinateEpoch () const
	Return the target epoch of coordinates. More...

virtual CoordinateOperationNNPtr	inverse () const =0
	Return the inverse of the coordinate operation. More...

bool	isPROJInstanciable (const io::DatabaseContextPtr &databaseContext) const
	Return whether a coordinate operation can be instanciated as a PROJ pipeline, checking in particular that referenced grids are available.

Public Member Functions inherited from osgeo::proj::common::ObjectUsage
const std::vector< ObjectDomainNNPtr > &	domains () PROJ_CONST_DECL
	Return the domains of the object.

Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
const metadata::IdentifierNNPtr &	name () PROJ_CONST_DECL
	Return the name of the object. More...

const std::string &	nameStr () PROJ_CONST_DECL
	Return the name of the object. More...

const std::vector< metadata::IdentifierNNPtr > &	identifiers () PROJ_CONST_DECL
	Return the identifier(s) of the object. More...

const std::vector< util::GenericNameNNPtr > &	aliases () PROJ_CONST_DECL
	Return the alias(es) of the object.

const std::string &	remarks () PROJ_CONST_DECL
	Return the remarks.

bool	isDeprecated () PROJ_CONST_DECL
	Return whether the object is deprecated. More...

std::string	alias () PROJ_CONST_DECL
	Return the (first) alias of the object as a string. More...

int	getEPSGCode () PROJ_CONST_DECL
	Return the EPSG code. More...

bool	isEPSG (int code) PROJ_CONST_DECL
	Return whether the object has a identifiers() in the EPSG code space.

Public Member Functions inherited from osgeo::proj::io::IWKTExportable
std::string	exportToWKT (WKTFormatter *formatter) const

Public Member Functions inherited from osgeo::proj::io::IPROJStringExportable
std::string	exportToPROJString (PROJStringFormatter *formatter) const
	Builds a PROJ string representation. More...

Static Public Member Functions
static SingleOperationNNPtr	createPROJBased (const util::PropertyMap &properties, const std::string &PROJString, const crs::CRSPtr &sourceCRS, const crs::CRSPtr &targetCRS, const std::vector< metadata::PositionalAccuracyNNPtr > &accuracies=std::vector< metadata::PositionalAccuracyNNPtr >())
	Instanciate a PROJ-based single operation;. More...

Static Public Member Functions inherited from osgeo::proj::common::IdentifiedObject
static IdentifiedObjectNNPtr	create (const util::PropertyMap &properties)
	Instanciate a new IdentifiedObject. More...

Additional Inherited Members
Public Types inherited from osgeo::proj::util::IComparable
enum	Criterion { Criterion::STRICT, Criterion::EQUIVALENT }
	Comparison criterion. More...

Static Public Attributes inherited from osgeo::proj::common::ObjectUsage
static const std::string	SCOPE_KEY
	Key to set the scope of a common::ObjectUsage. More...

static const std::string	DOMAIN_OF_VALIDITY_KEY
	Key to set the domain of validity of a common::ObjectUsage. More...

static const std::string	OBJECT_DOMAIN_KEY
	Key to set the object domain(s) of a common::ObjectUsage. More...

Static Public Attributes inherited from osgeo::proj::common::IdentifiedObject
static const std::string	NAME_KEY
	Key to set the name of a common::IdentifiedObject. More...

static const std::string	IDENTIFIERS_KEY
	Key to set the identifier(s) of a common::IdentifiedObject. More...

static const std::string	ALIAS_KEY
	Key to set the alias(es) of a common::IdentifiedObject. More...

static const std::string	REMARKS_KEY
	Key to set the remarks of a common::IdentifiedObject. More...

static const std::string	DEPRECATED_KEY
	Key to set the deprecation flag of a common::IdentifiedObject. More...

Detailed Description

A single (not concatenated) coordinate operation (CoordinateOperation)

Remarks: Implements SingleOperation from ISO 19111:2018

Member Function Documentation

SingleOperationNNPtr osgeo::proj::operation::SingleOperation::createPROJBased	(	const util::PropertyMap &	properties,
		const std::string &	PROJString,
		const crs::CRSPtr &	sourceCRS,
		const crs::CRSPtr &	targetCRS,
		const std::vector< metadata::PositionalAccuracyNNPtr > &	accuracies = `std::vector<metadata::PositionalAccuracyNNPtr>()`
	)

static

Instanciate a PROJ-based single operation;.

Parameters

properties	Properties
PROJString	the PROJ string.
sourceCRS	source CRS (might be null).
targetCRS	target CRS (might be null).
accuracies	Vector of positional accuracy (might be empty).

Returns: the new instance

bool osgeo::proj::operation::SingleOperation::isEquivalentTo	(	const util::IComparable *	other,
		util::IComparable::Criterion	criterion = `util::IComparable::Criterion::STRICT`
	)		const

overridevirtual

Returns whether an object is equivalent to another one.

Parameters

other	other object to compare to
criterion	comparaison criterion.

Returns: true if objects are equivalent.

Reimplemented from osgeo::proj::common::ObjectUsage.

const OperationMethodNNPtr & osgeo::proj::operation::SingleOperation::method ( )

Return the operation method associated to the operation.

Returns: the operation method.

const ParameterValuePtr & osgeo::proj::operation::SingleOperation::parameterValue	(	const std::string &	paramName,
		int	epsg_code = `0`
	)		const

noexcept

Return the parameter value corresponding to a parameter name or EPSG code.

Parameters

paramName	the parameter name (or empty, in which case epsg_code should be non zero)
epsg_code	the parameter EPSG code (possibly zero)

Returns: the value, or nullptr if not found.

const common::Measure & osgeo::proj::operation::SingleOperation::parameterValueMeasure	(	const std::string &	paramName,
		int	epsg_code = `0`
	)		const

noexcept

Return the parameter value, as a measure, corresponding to a parameter name or EPSG code.

Parameters

paramName	the parameter name (or empty, in which case epsg_code should be non zero)
epsg_code	the parameter EPSG code (possibly zero)

Returns: the measure, or the empty Measure() object if not found.

const std::vector< GeneralParameterValueNNPtr > & osgeo::proj::operation::SingleOperation::parameterValues ( )

Return the parameter values.

Returns: the parameter values.

The documentation for this class was generated from the following files:

include/proj/coordinateoperation.hpp
src/coordinateoperation.cpp
